Here are some stuff that has been sent to me by various generous folk, along with my attempts to explain what they are.
|
|
|
|
Engine bay markings
|
|
|
|

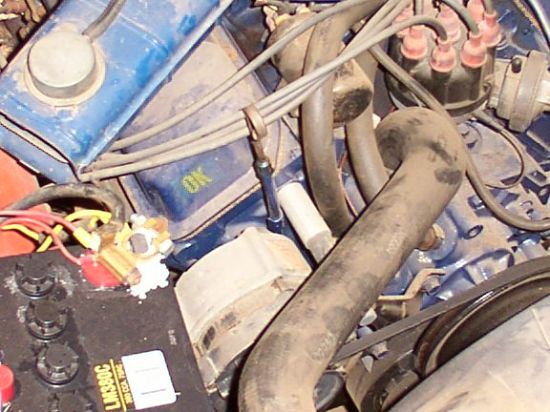

Here is the engine bay of an original, fairly unmolested XA.
|
|
|
|
You can see the ‘OK’ paint marking on the front of the drivers side rocker cover.
|
|
|
|
|
|
|
Note that the placement of the ‘OK’ letters can vary on the face of the rocker cover, as can the spacing between the letters.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The other rocker cover carried the ‘CK’ label, which was mentioned here, but it also had an emissions label.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

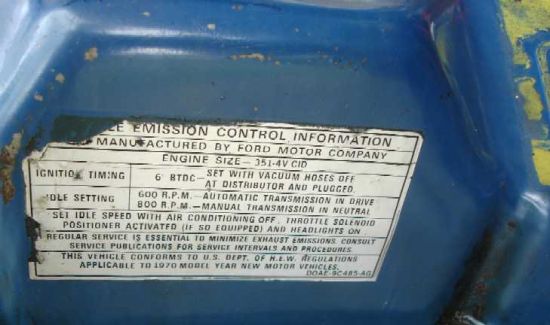

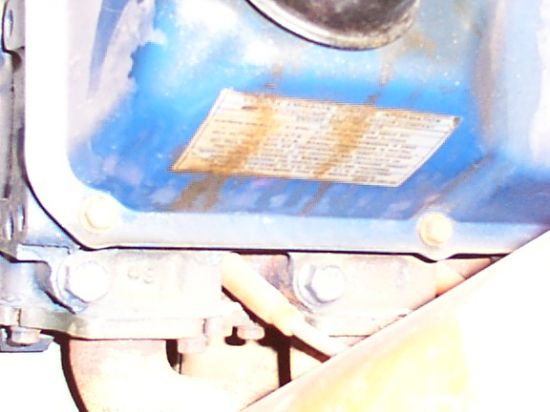

These emission decals were applied to US supplied engines. Here is the decal on a 1970 Ford Mustang.
|
|
|
|
|
|
|
And a 1971 Mustang.
|
|
|
|
|
|
|
Notice how the difference between the early ‘notched’ rocker and the late ‘chamfered’ rocker cover affects the label.
|
|
|
|
As an aside, for the 1973 model year in the US it appeared that some 351C engines fitted to Mustang/Cougars and Torinos came with rocker covers that had the ‘Powered by Ford’ enbossed on them, but most came with just the ‘Ford’ oval.
|
|
|
|
This resulted in different placements of the label.
|
|
|
|
1973 Mustang with PbF rockers.
|
|
|
|
|
|
|

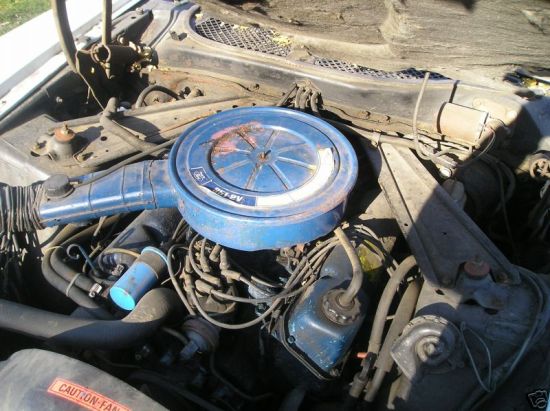

1973 Cougar with Ford rockers.
|
|
|
|
|
|
|
The sticker moved to the top of the rocker cover - where it must have been much easier to read - and the layout changed.
|
|
|
|
|
|
|
The later U.S. emission decal in original detail.
|
|
|
|
|
|
|
|

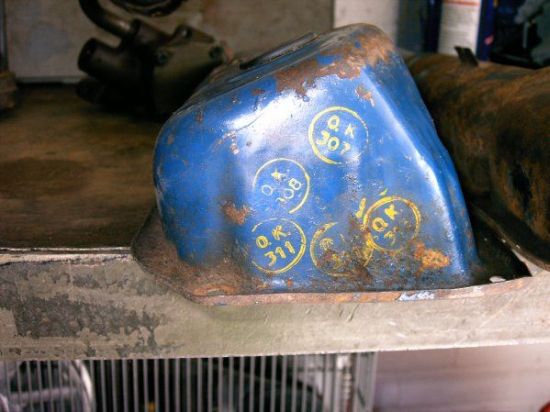

It is also worth noting that the ‘OK’ stampings were popular in the U.S.
|
|
|
|
|
|
|
|
It appears that imported engines fitted to 1973 XA Falcons did not have this yellow label attached to their engines.
|
|
|
|
However, the US exported, Australian imported 351C engines carried a large yellow ‘DSO’ sticker on the passenger side rocker cover.
|
|
|
|
|
|
|
|
|
|

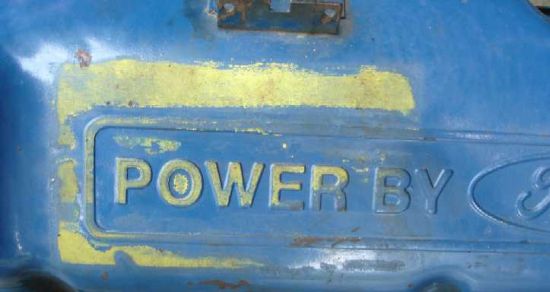

However, it would appear that, in many cases, attempts were made to remove the sticker - either at the factory, or at dealers. Unfortunately, this seems to have resulted in the unsightly and ragged yellow ‘splodge’ that adorns many 351C powered GT’s now.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interestingly, this original XW GT-HO Phase2 has the remains of the sticker in a completely different location.
|
|
|
|
|
|
|
|
|
|
|

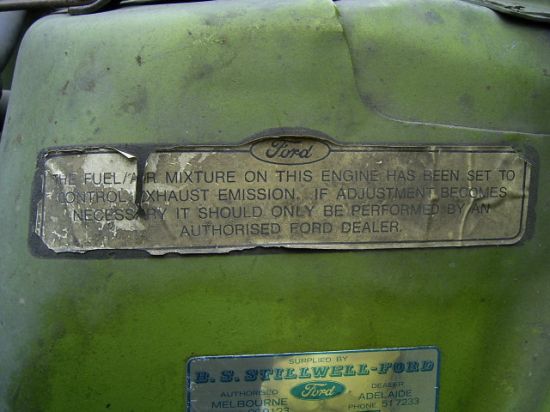

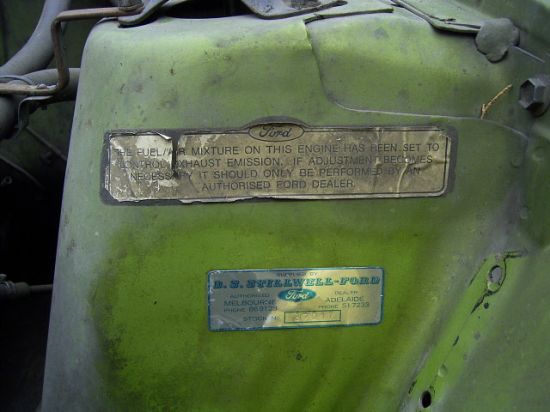

Here is the emission sticker for a late 72 XA. It is fixed to the front face of the pax side suspension tower.
|
|
|
|
|
|
|
|
Note also the Bib Stillwell dealer sticker, which includes a stock number.
|
|
|
|
|
|
|
XW-XY GT petrol cap and ring
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XW GT driving lamp brackets
|
|
|
|
|
|
|
|
|
|
|
|

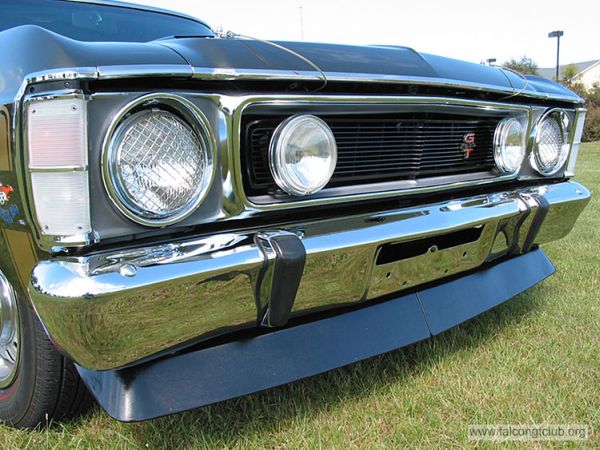

These are the curved brackets to mount the driving lamps on the front of an XW GT.
|
|
|
|
|
|
|
|
They are relatively simple, and crude, affairs, being just curved brackets welded to the existing grille support brackets. But they are clever and effective for all that.
|
|
|
|

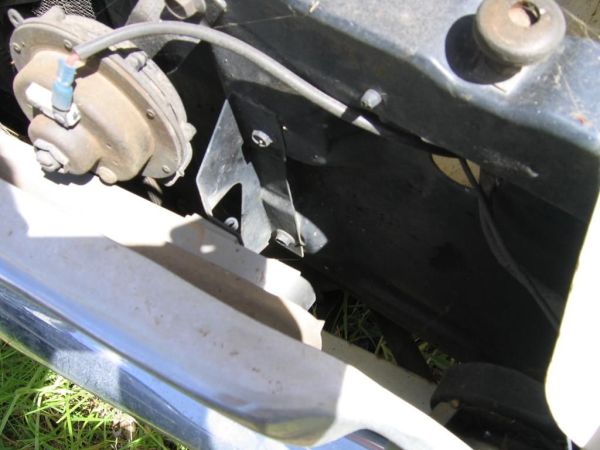

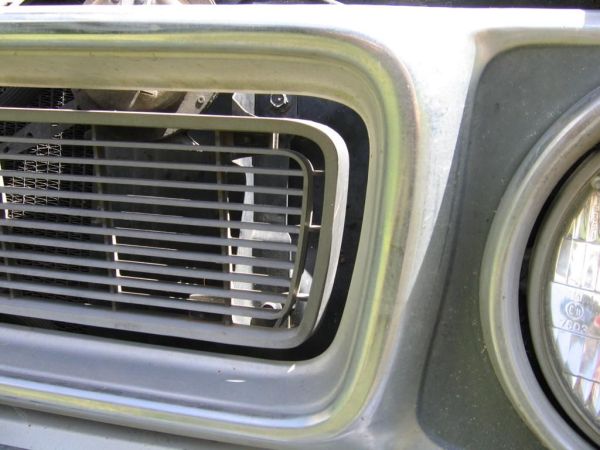

Here is a regular XW showing the ‘normal’ grille support brackets, and the gap that the curved sections protrude through.
|
|
|
|
|
|
|
|
|
|
|

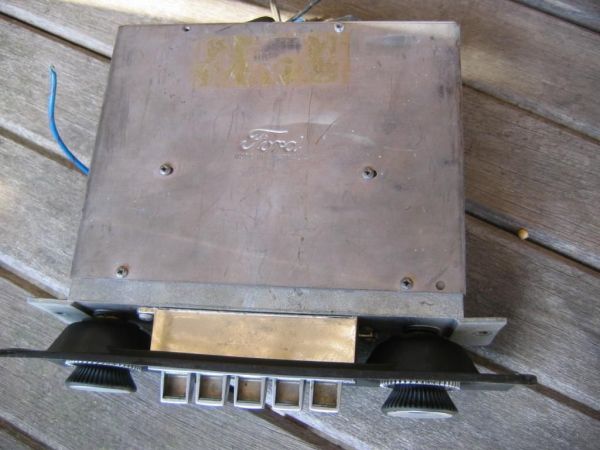

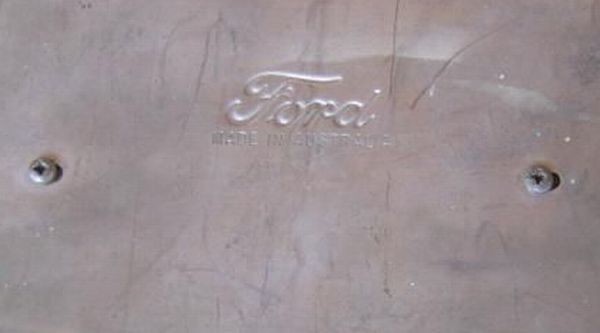

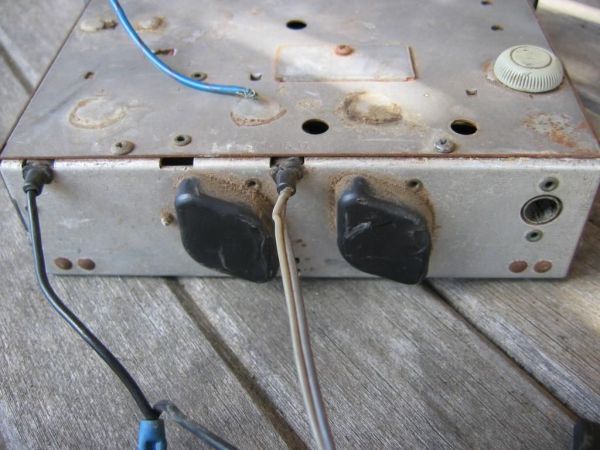

XW-XY Super Fringe radio
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note that this radio has chrome buttons signifying it has come from a Fairmont, Falcon GT or Fairlane 500.
|
|
|
|
XW GT speedometer and tachometer
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XR GT gearbox floorshift hump
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XW-XY Top Loader shifter
|
|
|
|
|
|
|
|
|
|
|
|
XA - XB Top Loader shifter
|
|
|
|
|
|
|
|
|
|
|
|

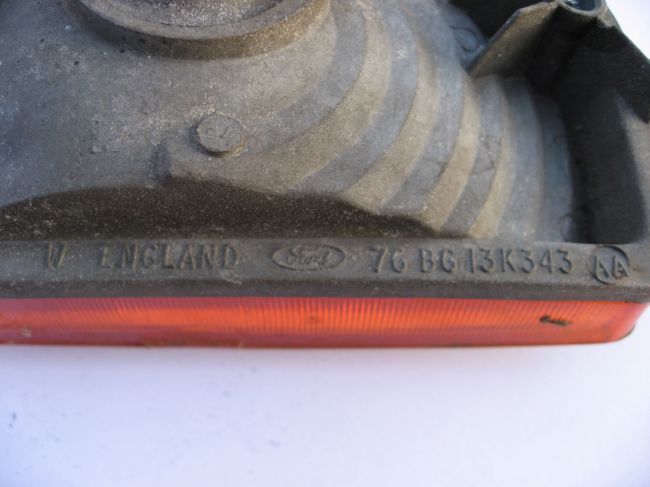

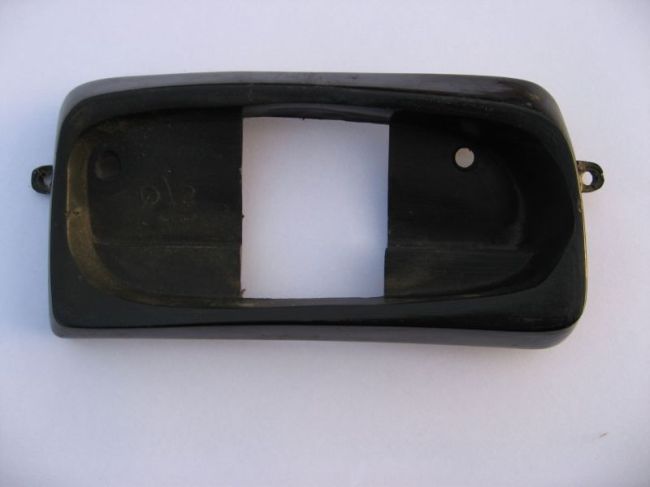

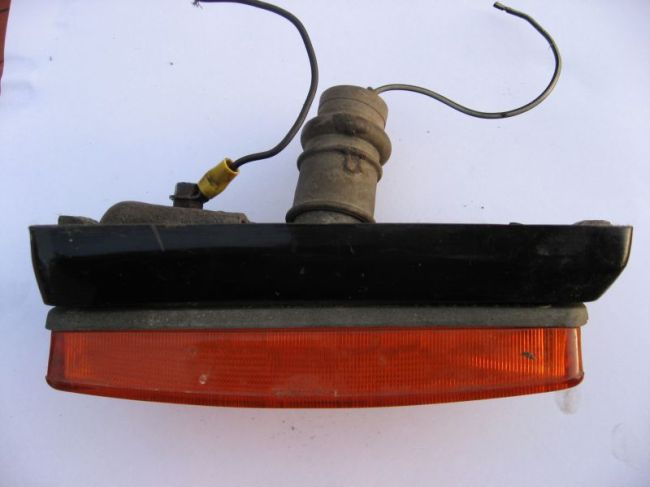

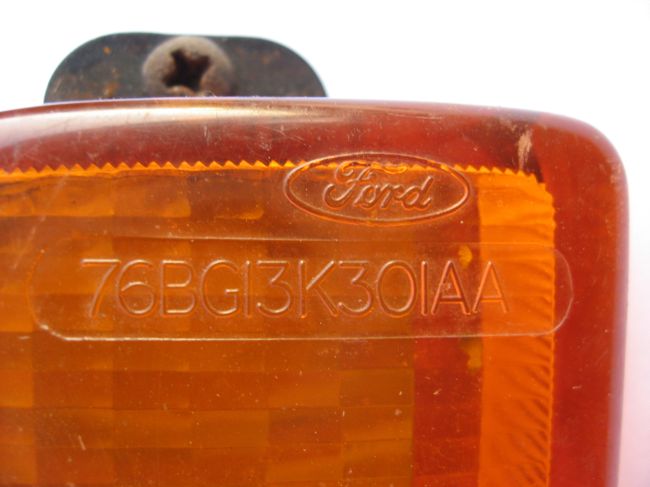

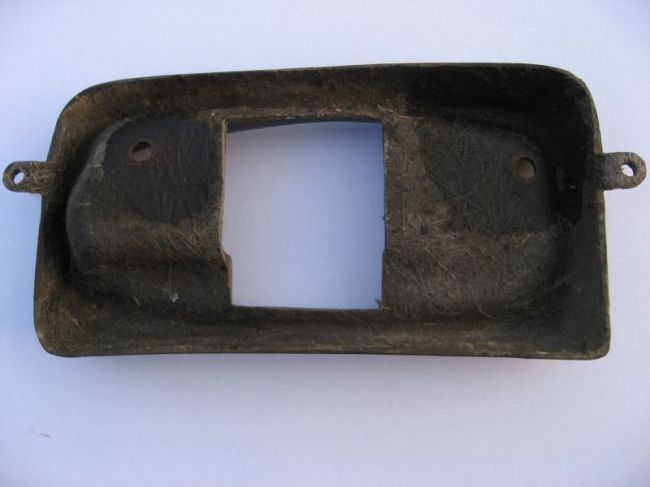

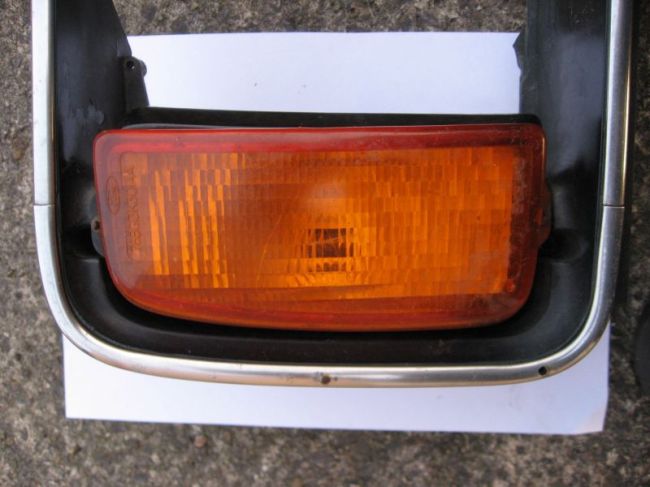

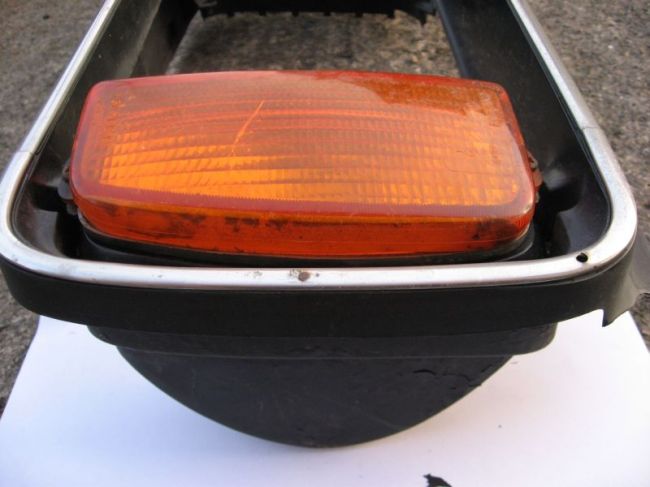

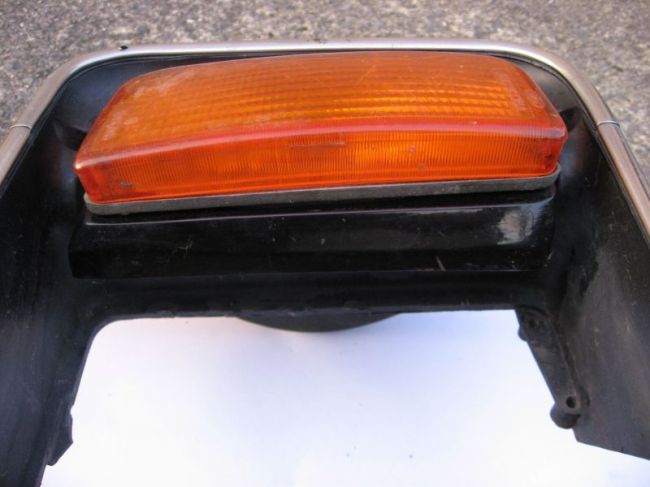

UK XC front indicators
|
|
